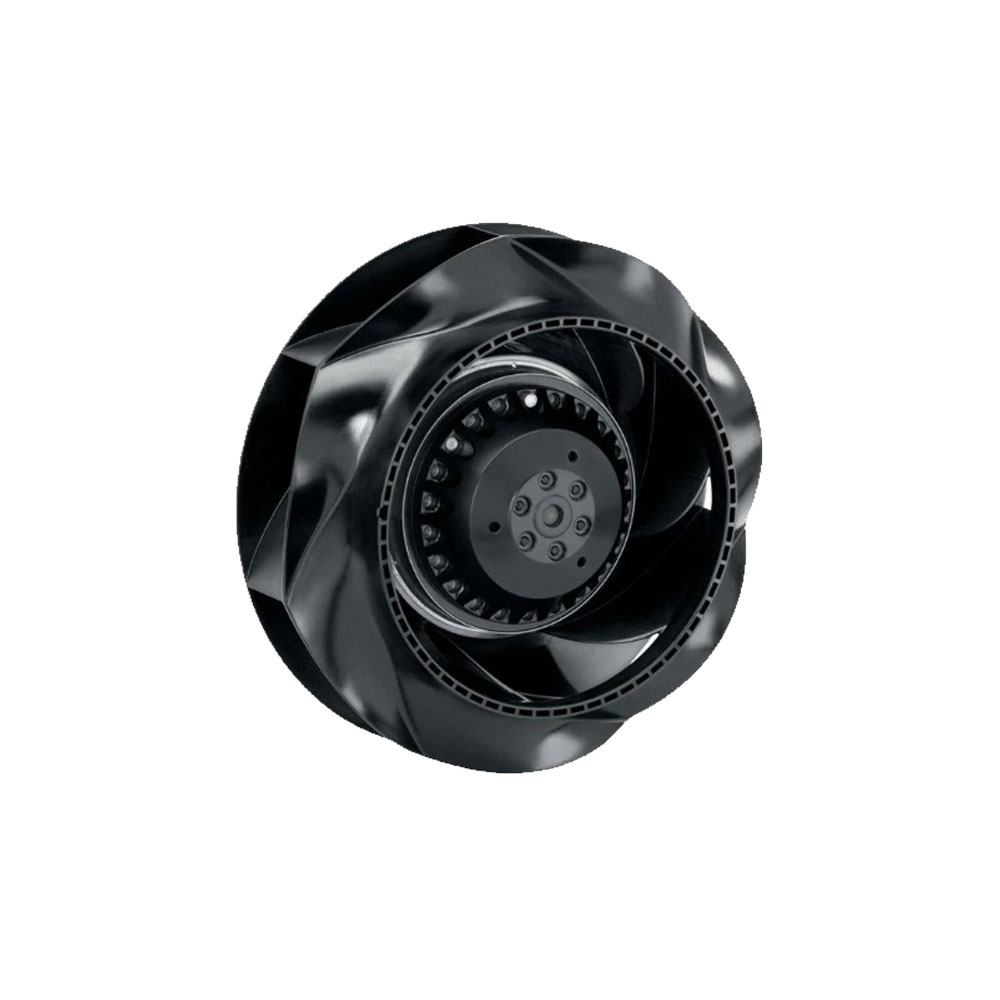

Type R2E250-RA50-01
Motor M2E068-EC
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Method of obtaining data ml ml
Valid for approval/standard – –
Speed (rpm) min-1 2500 2450
Power consumption W 210 285
Current draw A 0.93 1.25
Capacitor µF 5 5
Capacitor voltage VDB 400 400
Capacitor standard S0 (CE) S0 (CE)
Min. back pressure Pa 0 0
Min. back pressure in. wg 0 0
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 70 30
Starting current A 1.5 1.4
