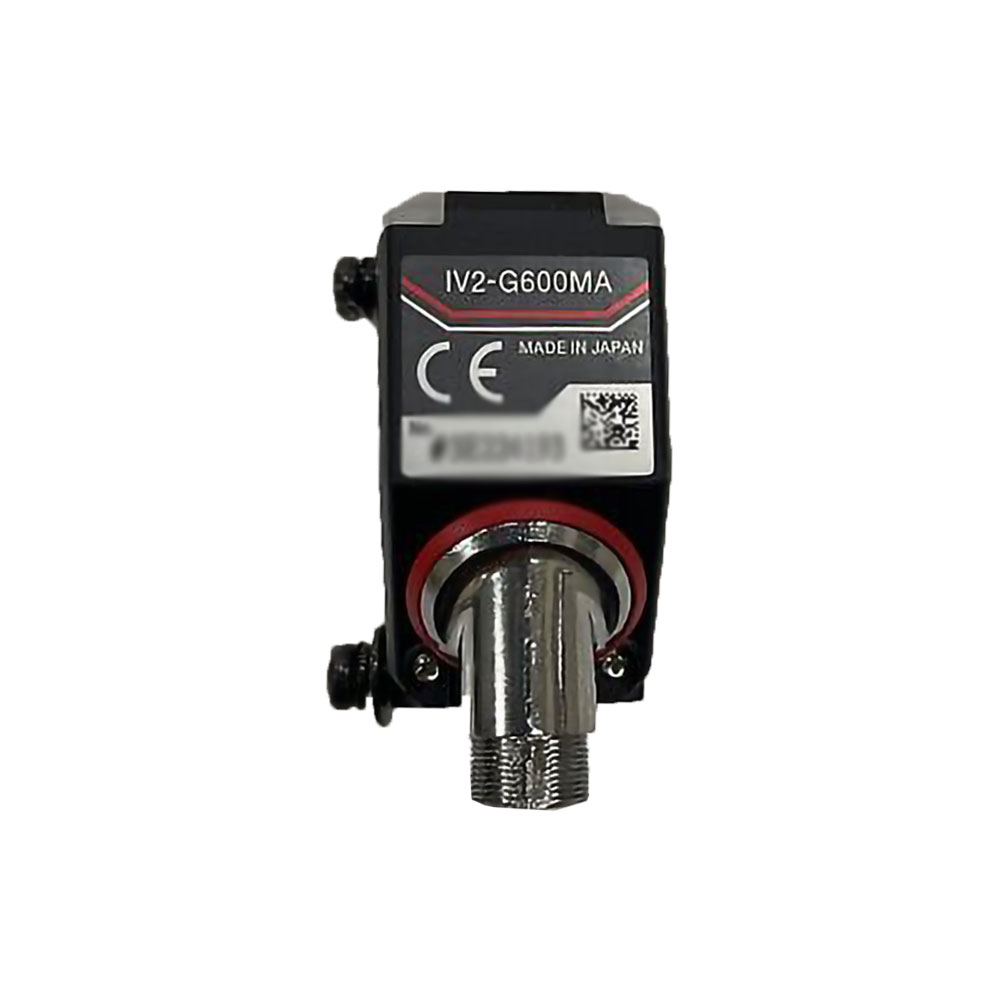

| Model | IV2-G600MA | |||
| Type | Wide field of view sensor model | |||
| Reference distance | 40 to 600 mm | |||
| Field of view | Installation distance of 40 mm: 42 (H) × 31 (V) mm to Installation distance of 600 mm: 550 (H) × 412 (V) mm |
|||
| Indicators | 2 (the same display details for both indicators) | |||
| Image receiving element | Type | 1/3 inch monochrome CMOS | ||
| Number of pixels | 752 (H) × 480 (V) | |||
| Focus adjustment | Automatic*1 | |||
| Exposure time | 1/50 to 1/50000 | |||
| Lights | Illumination | Infrared LED | ||
| Lighting method | Pulse lighting | |||
| Environmental resistance | Enclosure rating | IP67*2 | ||
| Ambient temperature | 0 to +50°C (No freezing) | |||
| Relative humidity | 35 to 85% RH (No condensation) | |||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions*3 | |||
| Shock resistance | 500 m/s2, 6 times in each of the 3 directions*3 | |||
| Material | Main unit case: Zinc die-casting, Front cover: Acrylic (hard coat), Operation indicator cover: TPU | |||
| Weight | Approx. 75 g | |||
