describe

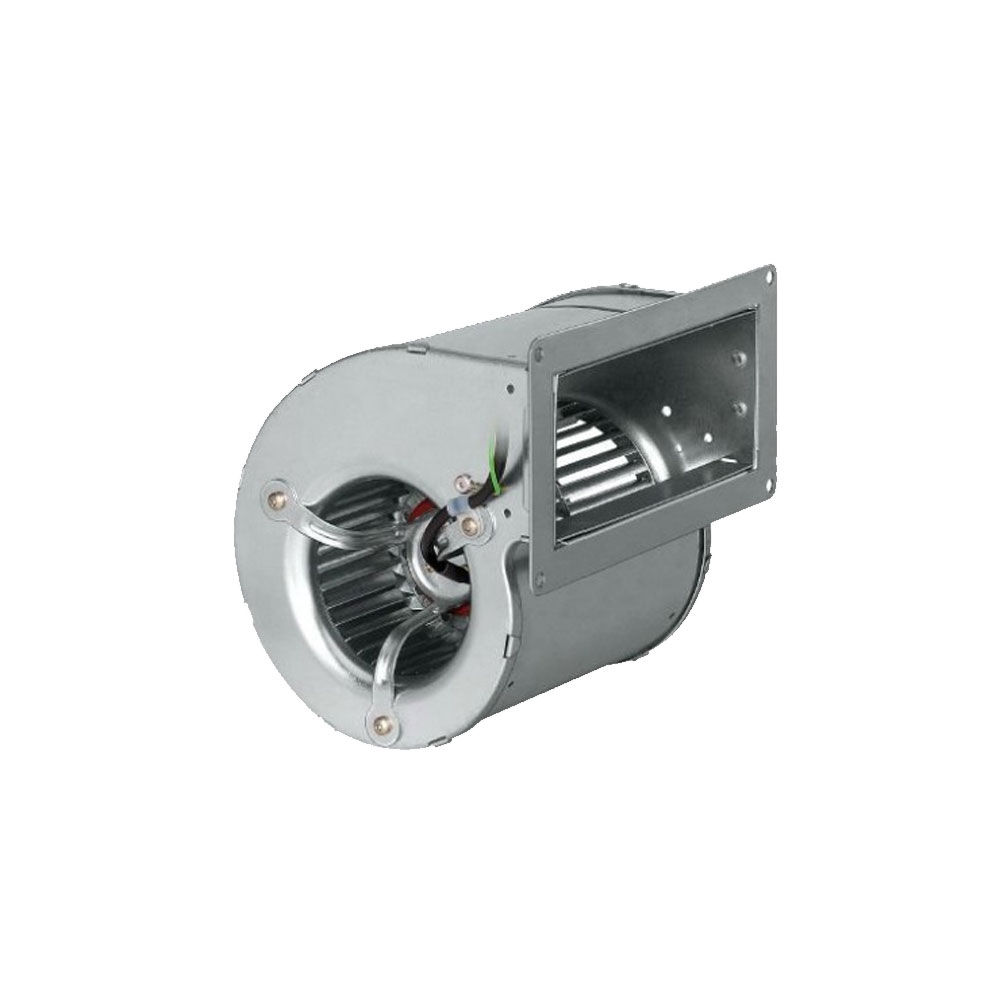

Type D2E160-AH02-15
Motor M2E074-LA
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Method of obtaining data ml ml
Valid for approval/standard – –
Speed (rpm) min-1 2500 2400
Power consumption W 550 730
Current draw A 2.45 3.2
Capacitor µF 12 12
Capacitor voltage VDB 400 400
Min. back pressure Pa 400 390
Min. back pressure in. wg 1.61 1.57
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 90 50
